Brand-new Triple-camera gimbal system | High sensitivity infrared sensor | AI Super Night Scene | Long distance image transmission

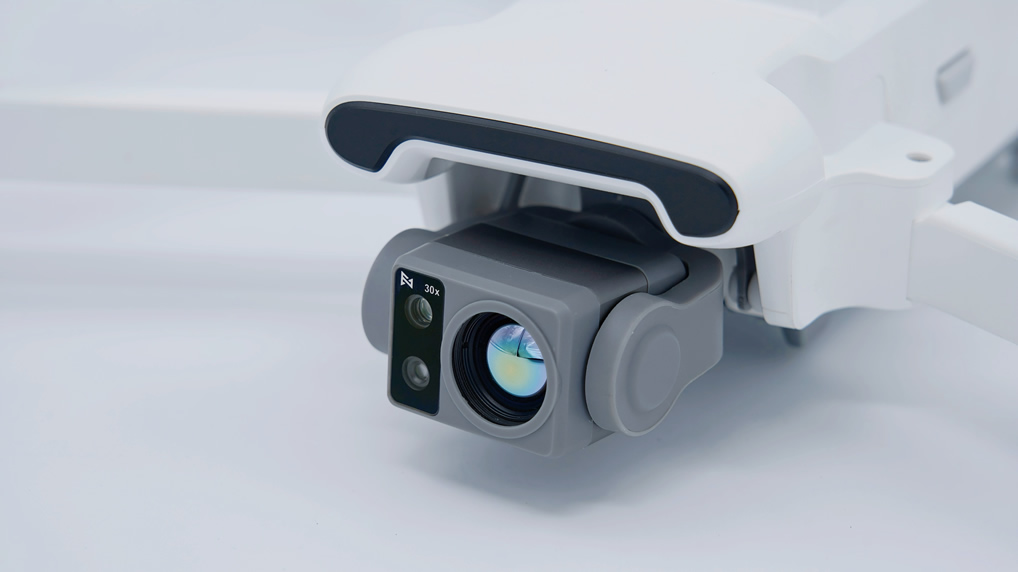

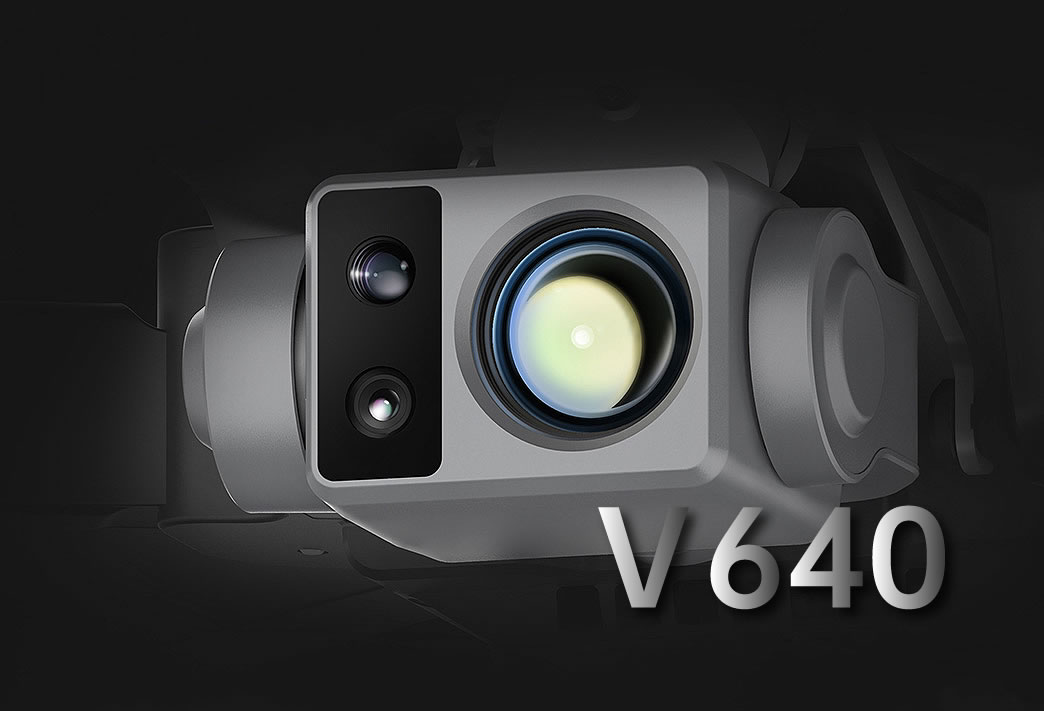

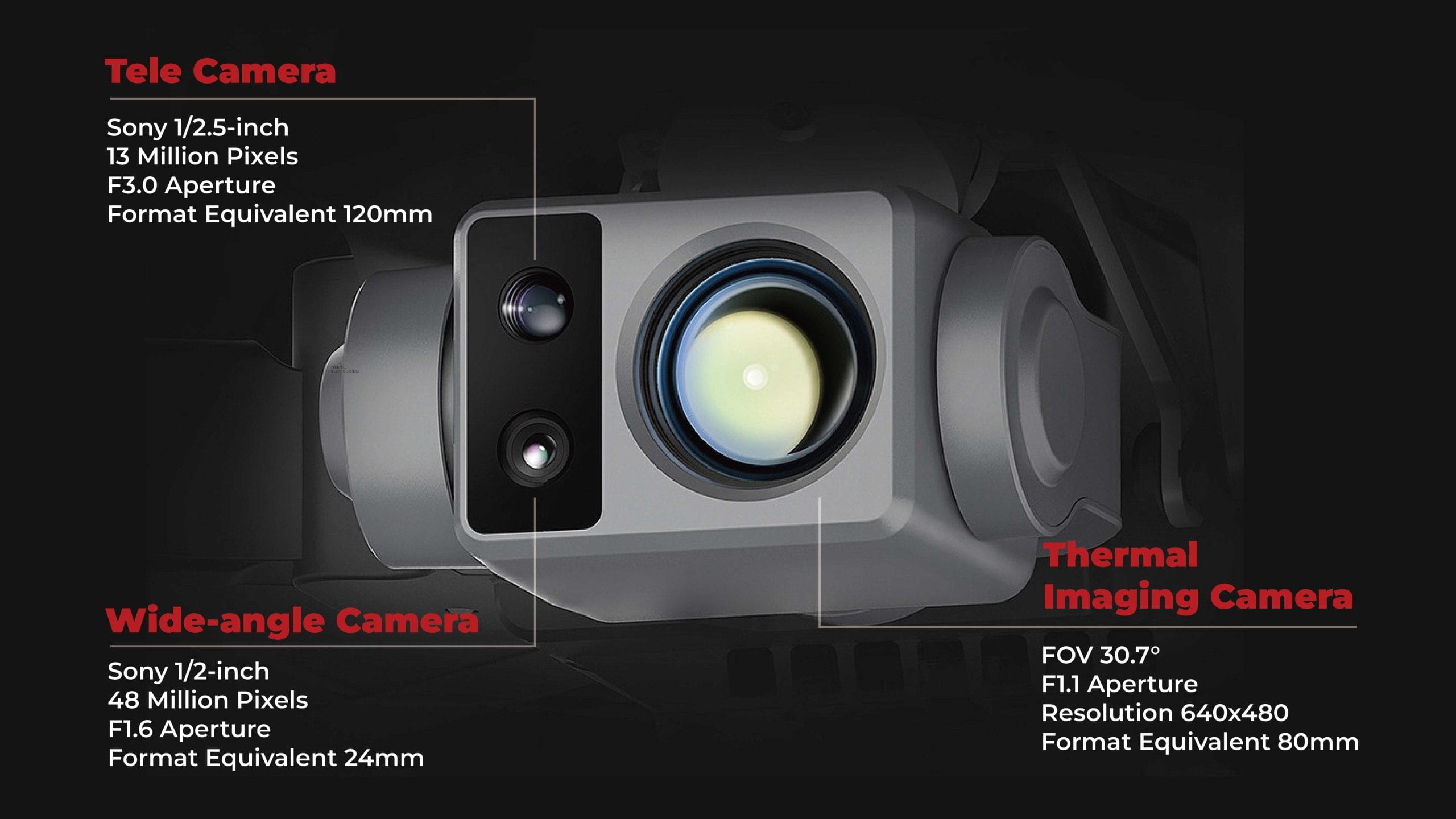

The first multi-camera system integrates a 48MP wide-angle camera, a 5x optical zoom tele camera, and a thermal camera with a 640 resolution.
FOV 30.7° F1.1 Aperture Resolution
640x480 Format Equivalent 80mm
Sony 1/2 -inch 48 Million Pixels F1.79
Aperture Format Equivalent 24mm
Sony 1/2.5-inch 13 Million Pixels F3.0
Aperture Format Equivalent 120mm
30x hybrid zoom, which can both display a wide field of view and capture details from afar.

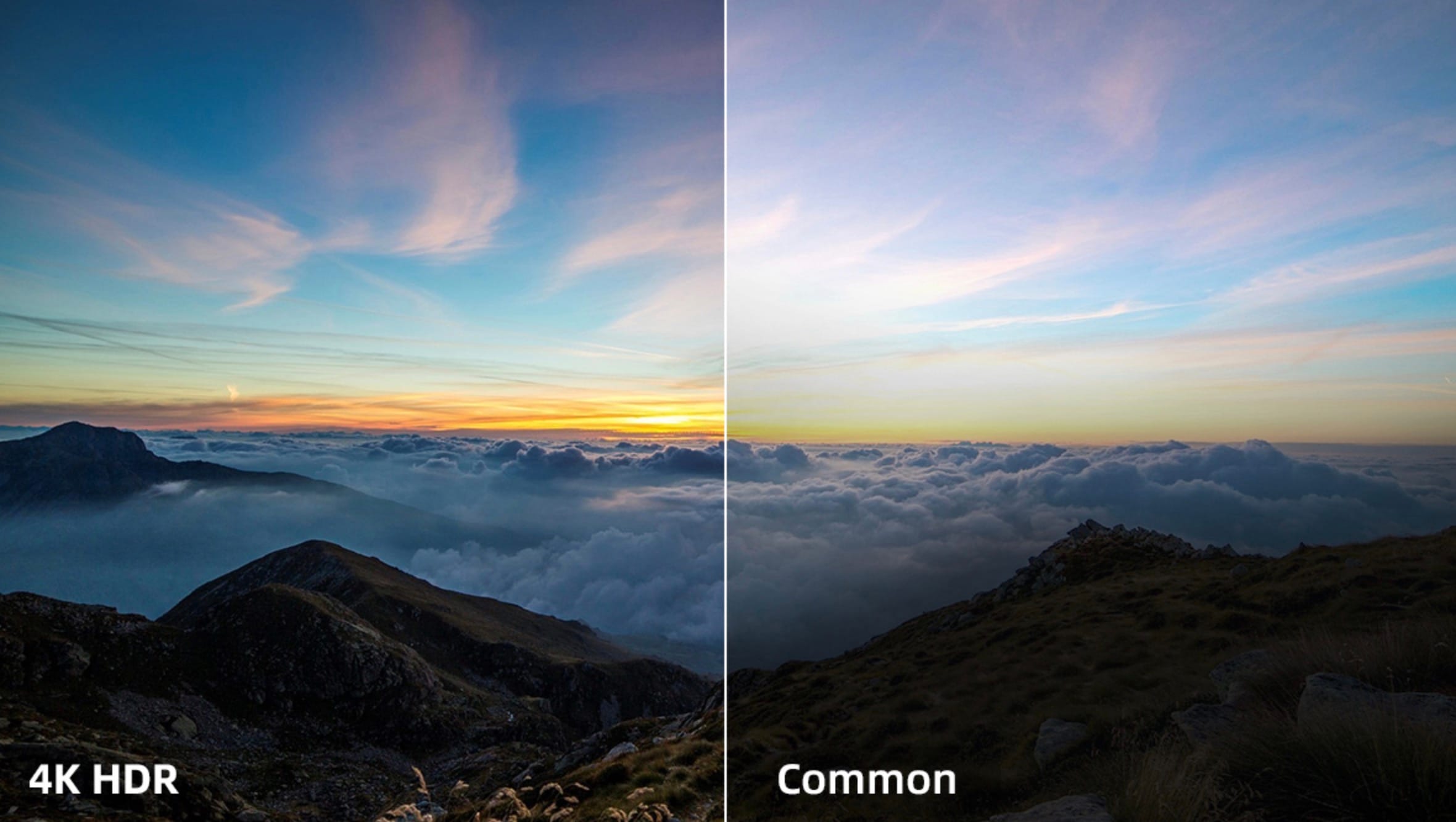

Equipped with a Sony 1/2-inch sensor, camera supports 4K/30fps video recording and works in conjunction with a telephoto camera to achieve 30x hybrid zoom.
30x hybrid zoom, which can both display a wide field of view and capture details from afar.

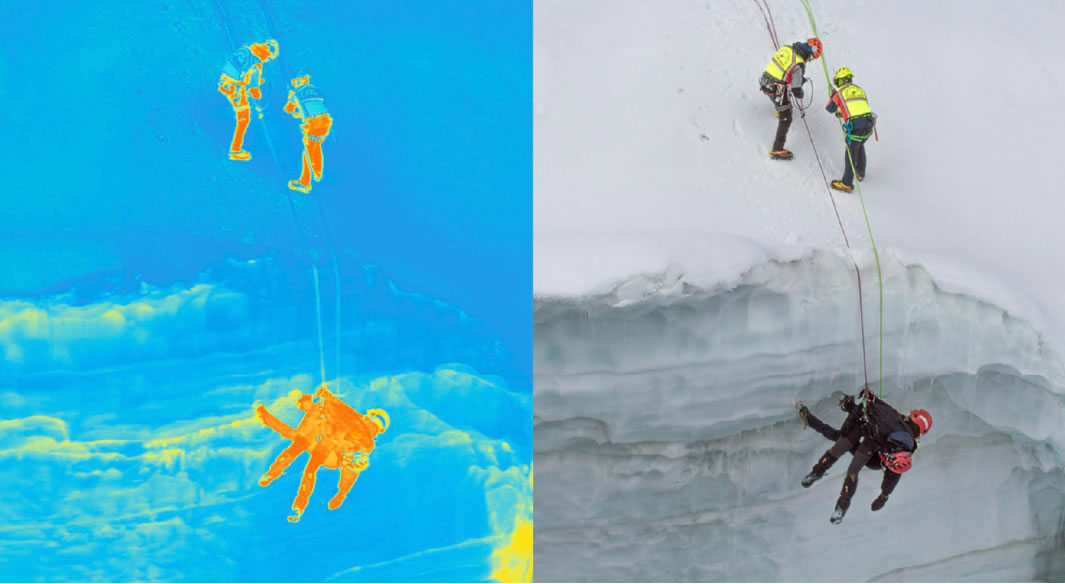

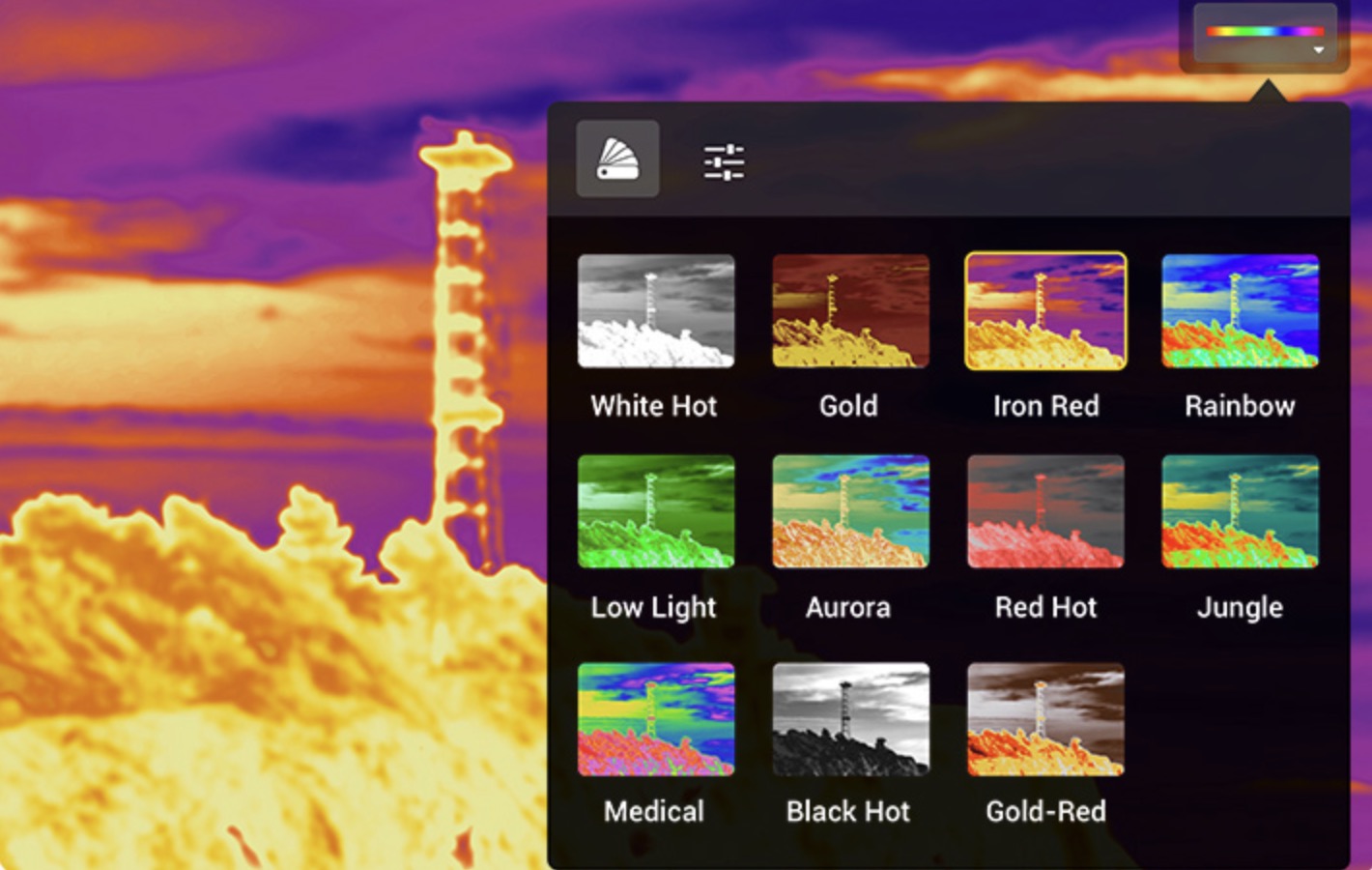

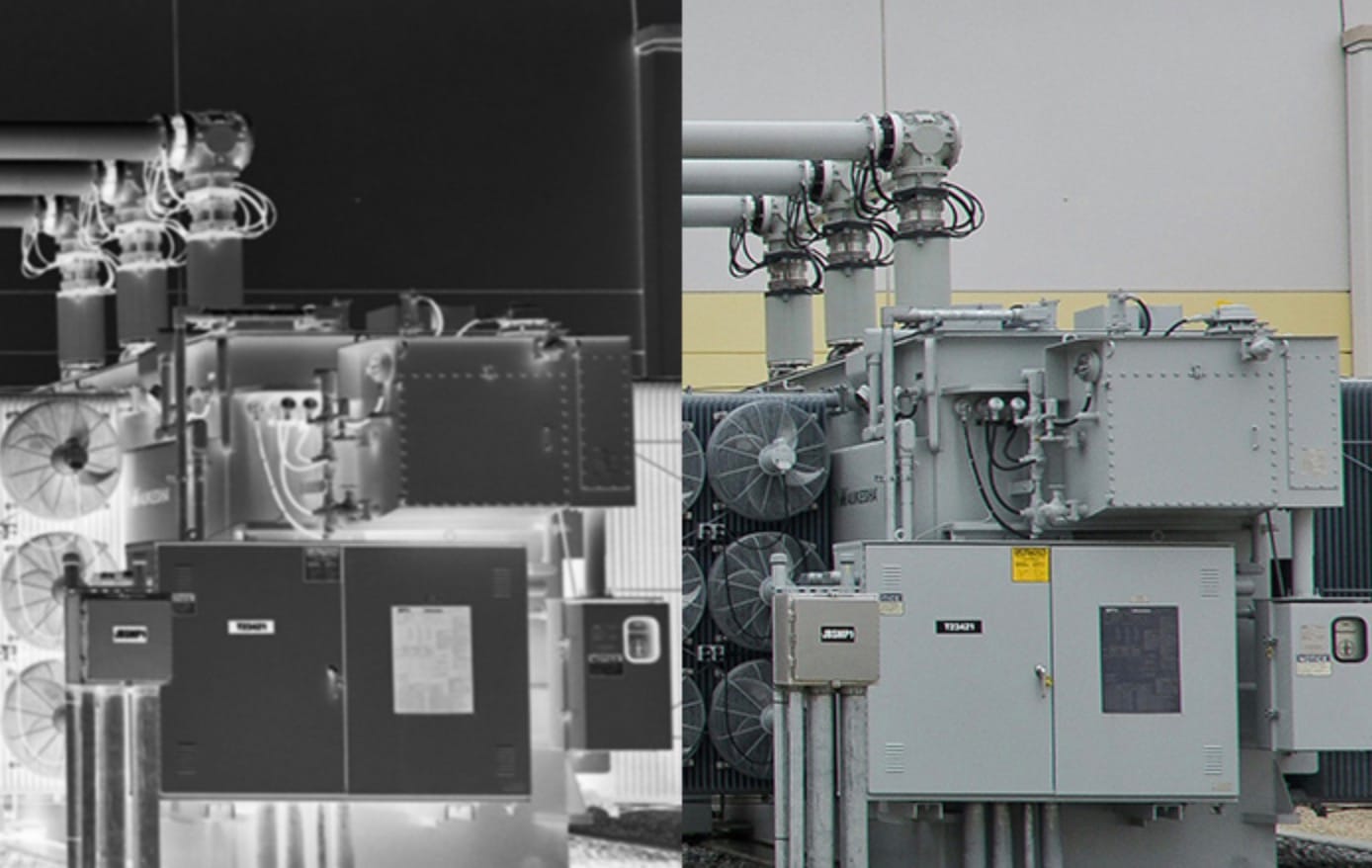

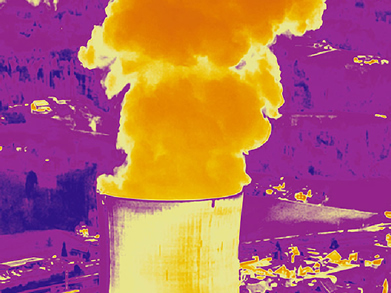

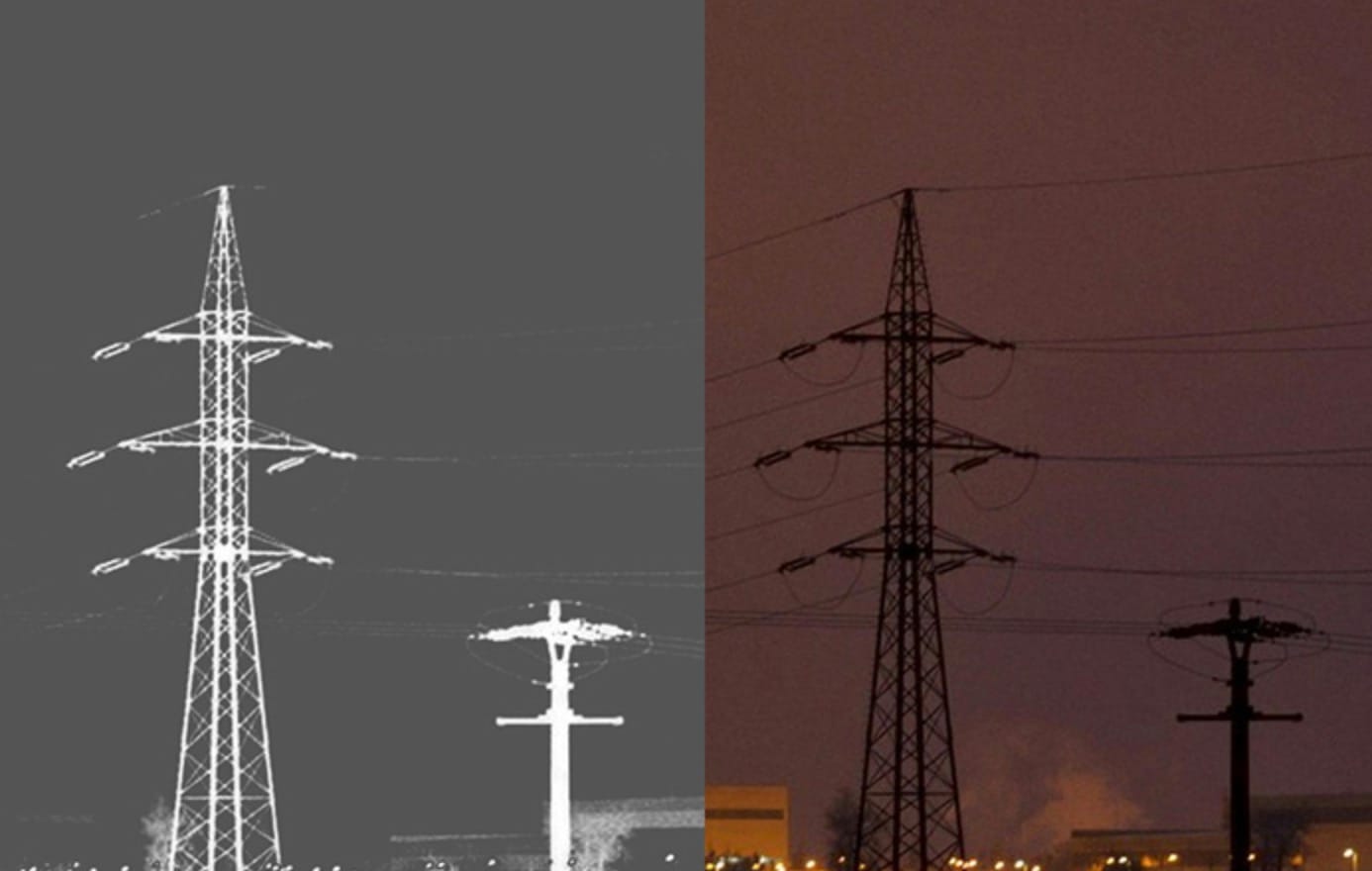

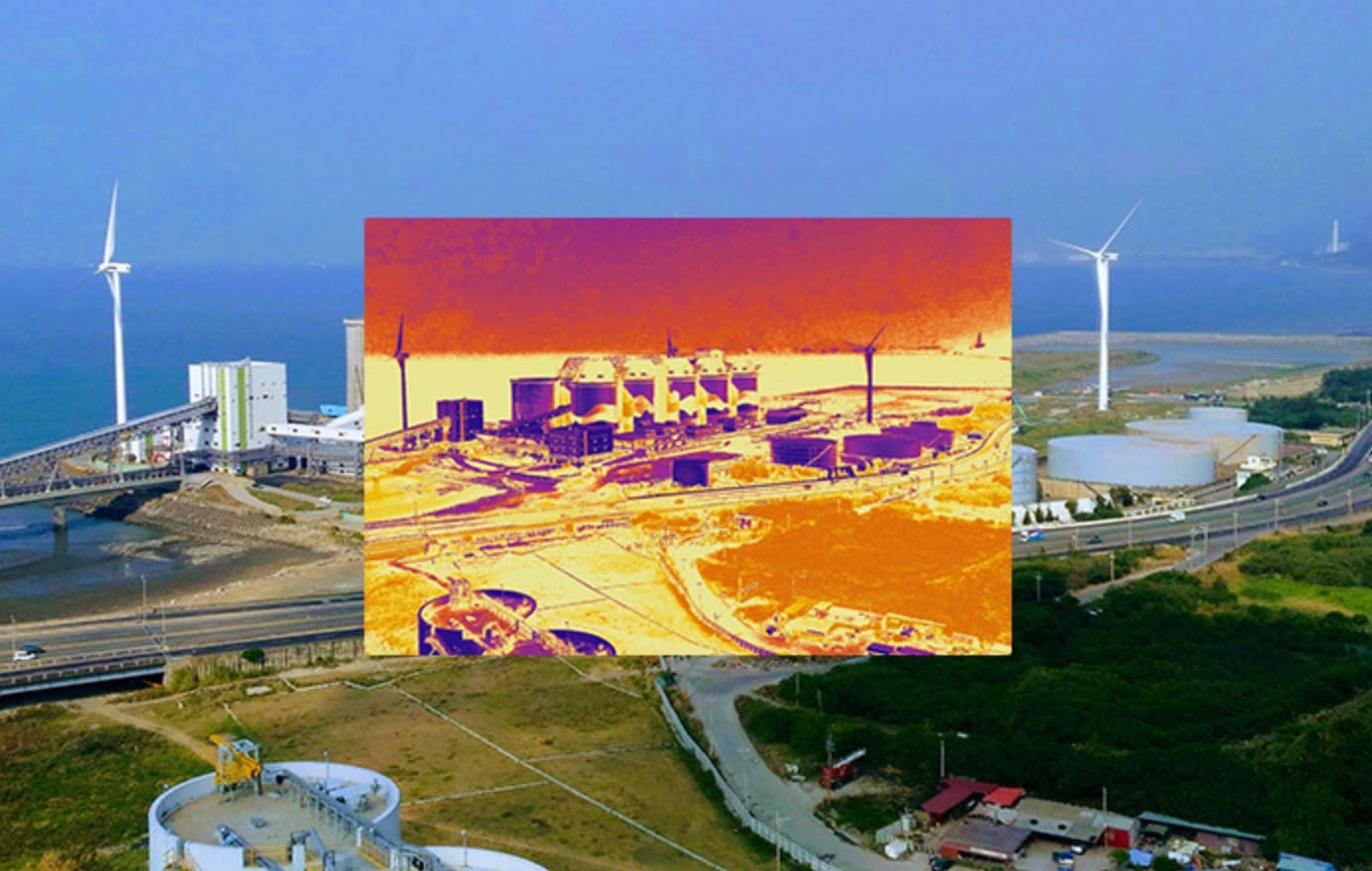

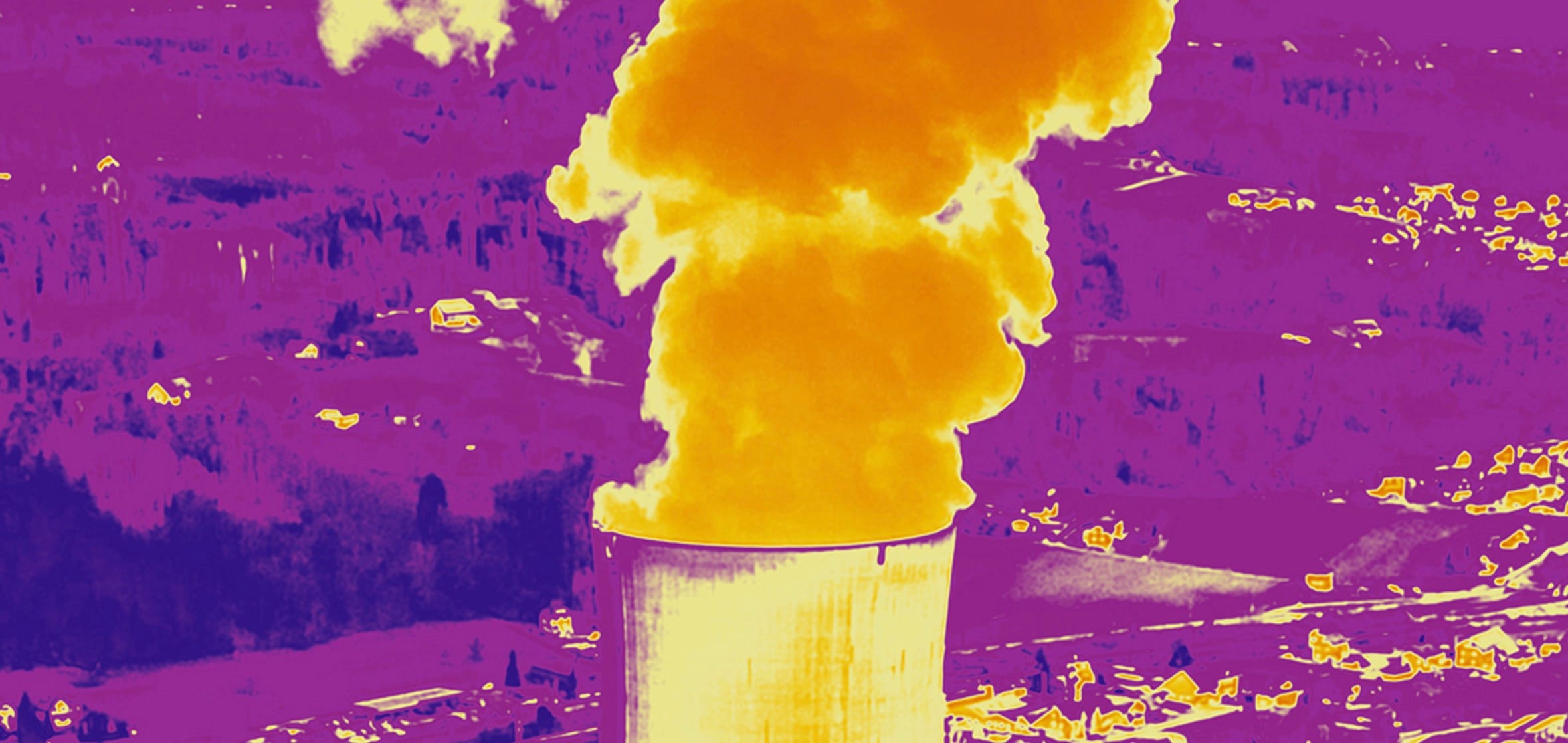

Thermal imaging and visible light images are displayed simultaneously, allowing operators to monitor thermal data in real-time for more accurate environmental assessments.

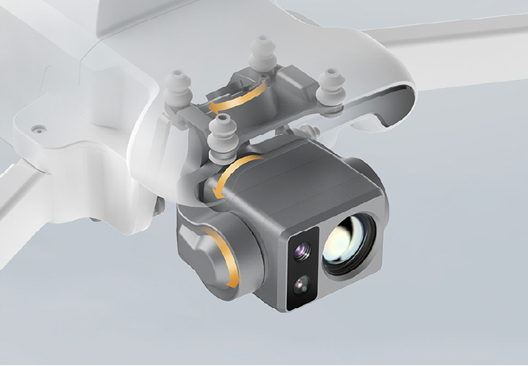

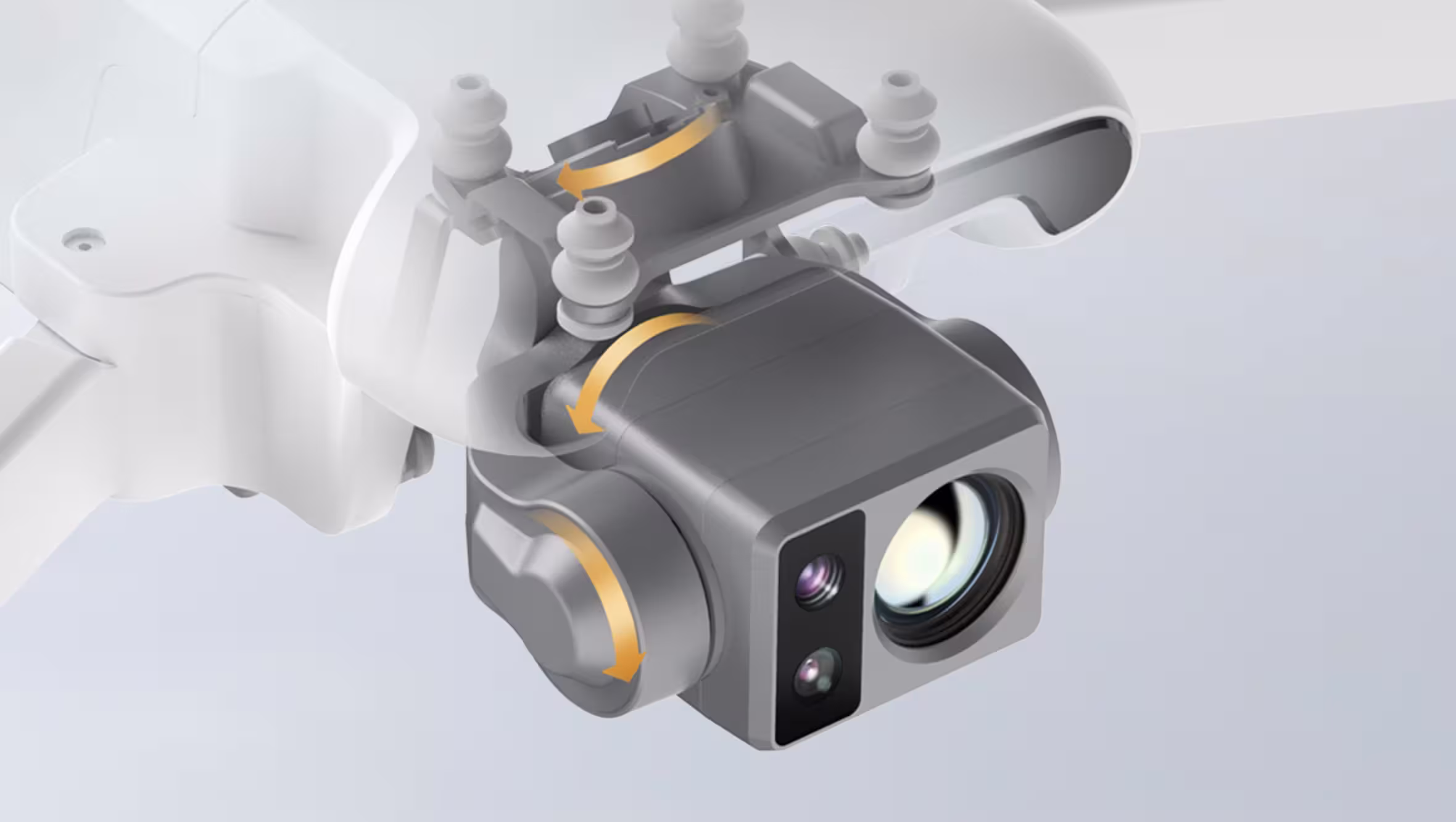

The brand new three-axis mechanical anti-shake stabilization gimbal and the next-generation LOS stabilization algorithm ensure high-precision control. Advanced stabilization algorithms and automatic tracking features ensure optimal shooting and observation in various scenarios.

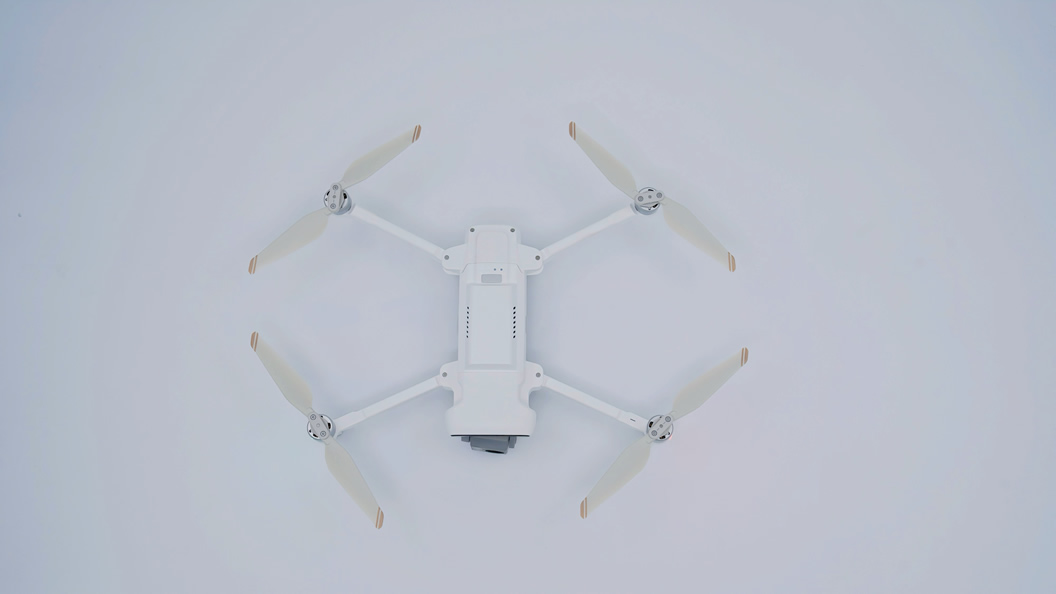

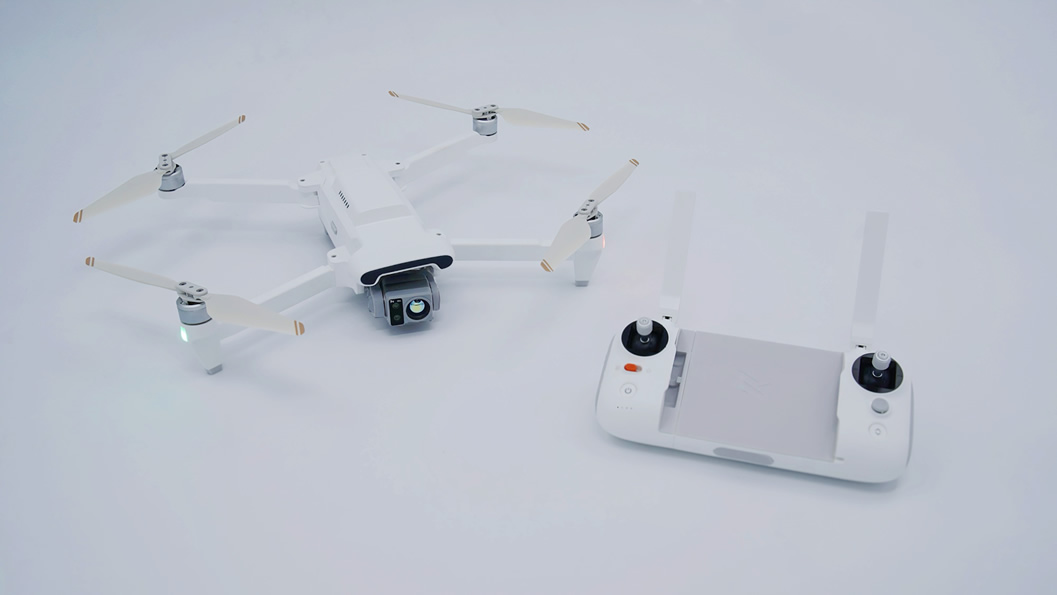

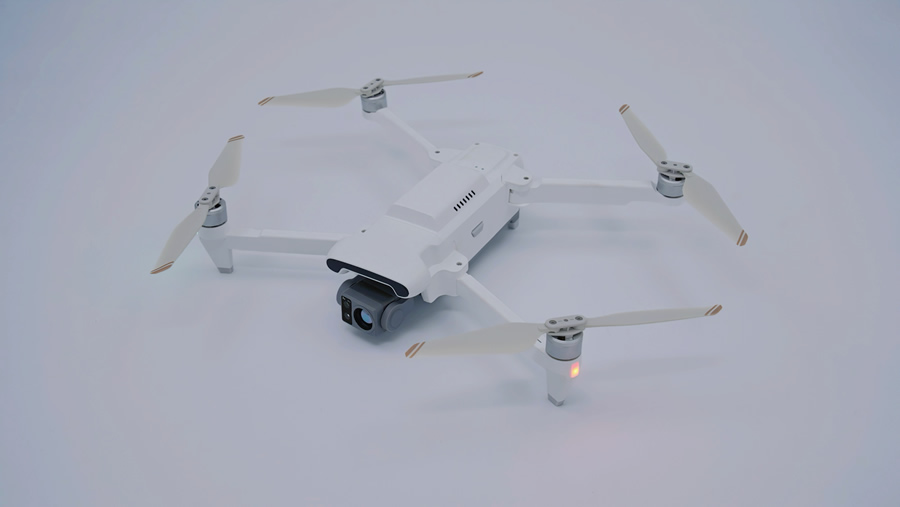

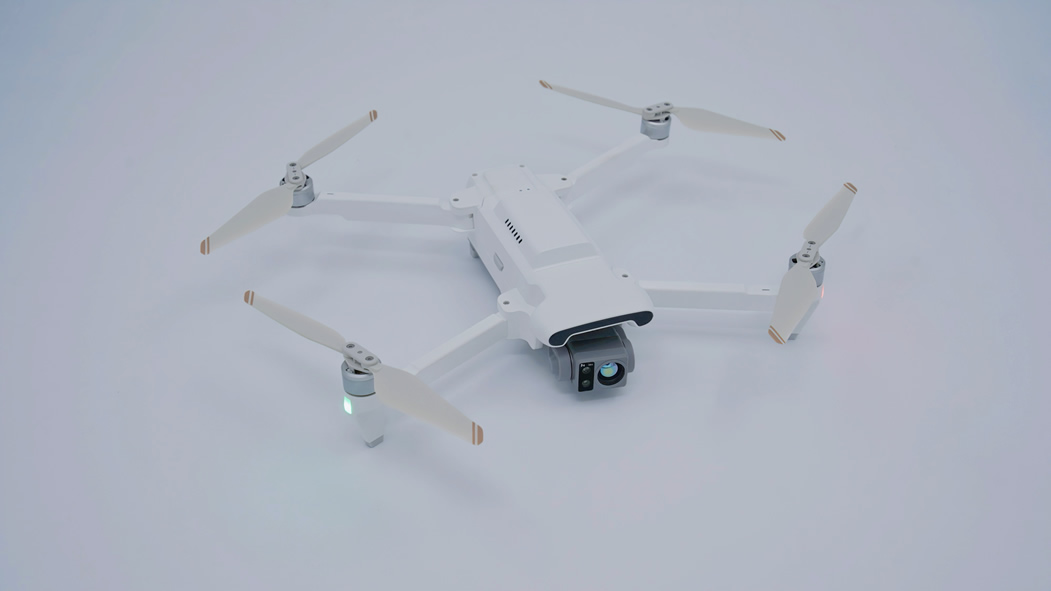

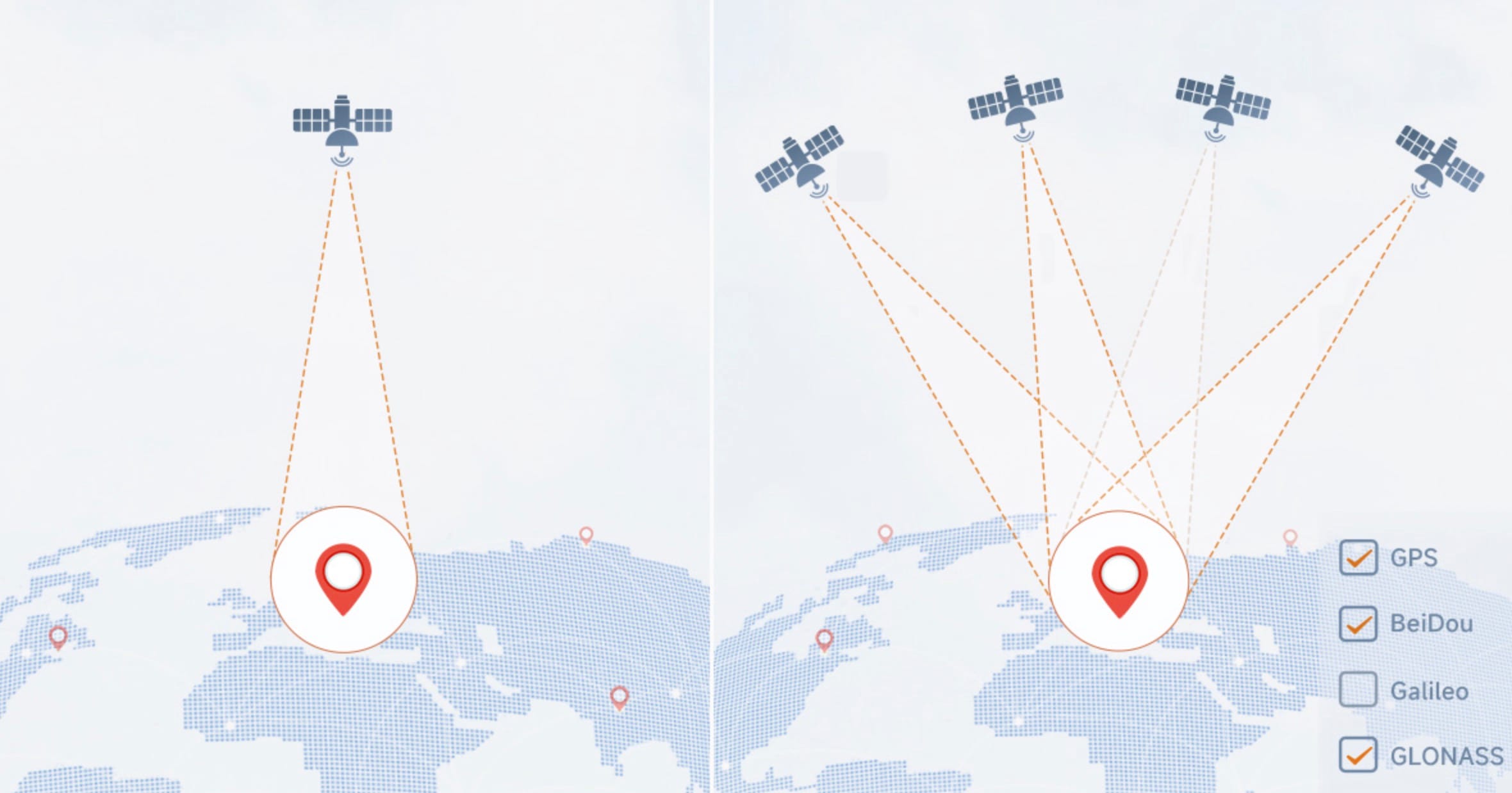

With its lightweight design, the device supports 20km long-range image transmission and up to 47 minutes of flight time. Equipped with a 640x480 resolution thermal imaging camera and precise GNSS positioning, it excels in quickly locating and locking onto targets, making it the ideal choice for SAR (Search and Rescue) missions.

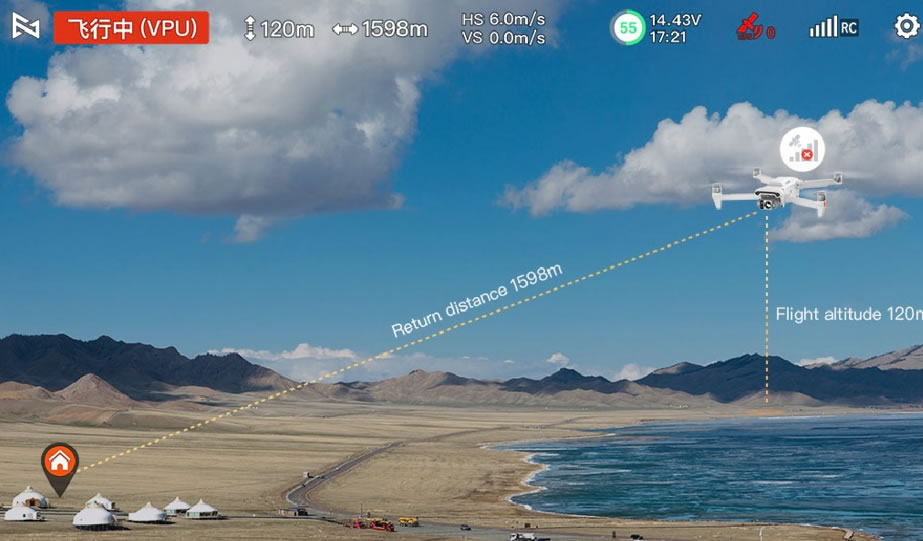

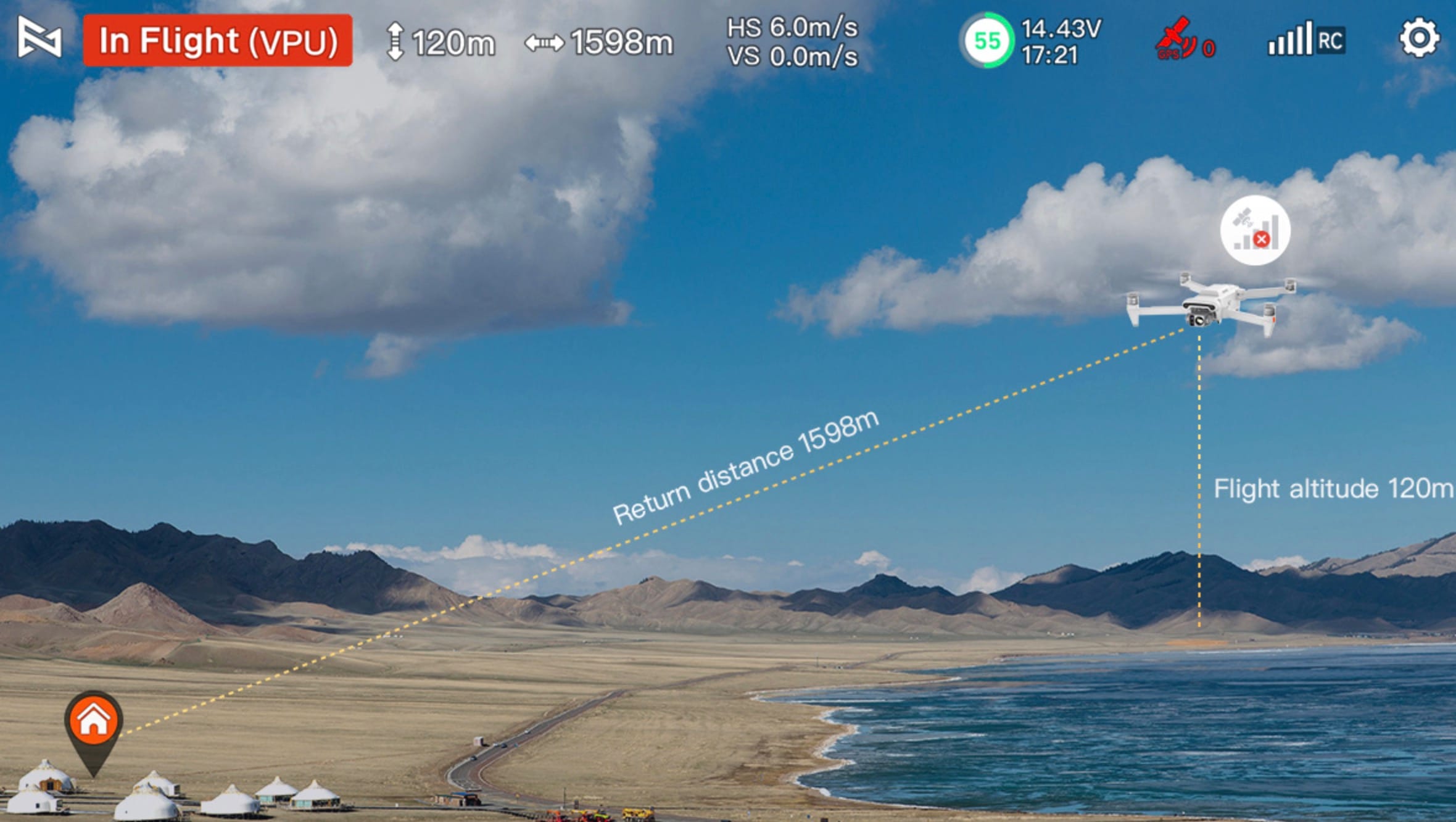

The X8T V640 integrates advanced distance measurement technology with high-precision sensors, enabling accurate display of flight altitude and return distance even without GPS. This ensures reliable flight data and provides robust safety assurance for diverse mission scenarios.
The latest Generation AI ISP, super photosensitive and noise reduction, improves the signal-to-noise ratio by 4 times, can challenge larger image sensors, and capture pure and translucent images in low-light environments at night.
All multiple safe protection functions ensure that X8T V640 achieves a safe journey.
Rain-Proof Design
Return Home Modes

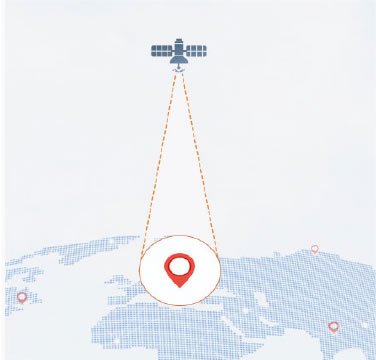

GPS Real-time Tracking
Low-Battery Alarm
Return wind Warning
Excessive Power Warning

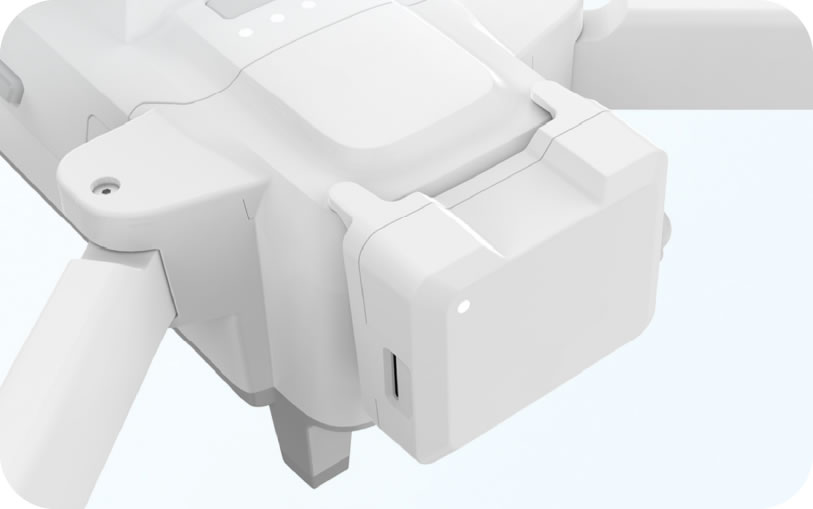

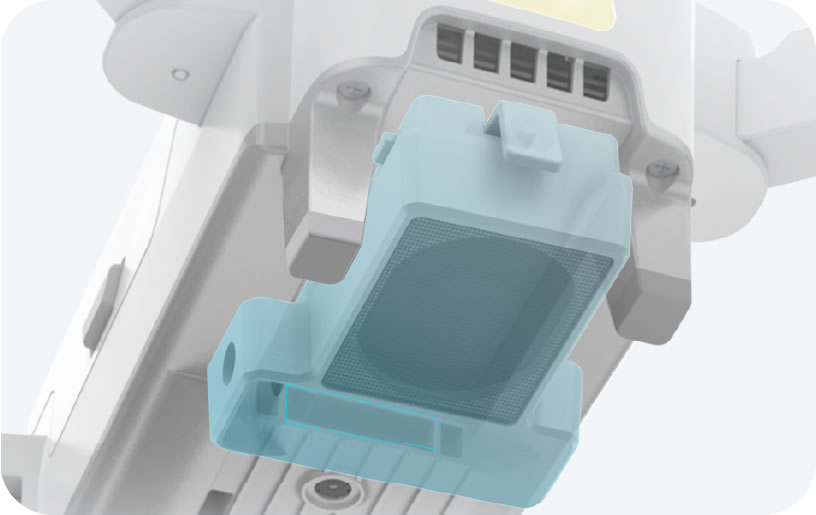

This port allows for more DIY possibilities.
It is compatible with a variety of accessories,
including the megaphone module, allowing
you to have more fun when flying.
*Megaphone module is optional
| Product Name/Model | X8T | Mavic 3T |
|---|---|---|
| Fuselage dimensions | Folded (without paddles): length 218mm x width 106mm x height 72.6mm Expanded (without paddles): L242mm x W334mm x H72.6mm |
Folded (without propellers): 221×96.3×90.3 mm (L×W×H) Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H) |
| Takeoff weight | Smart battery approx. 768g Approx. 837 grams for the Smart Battery of the Long Life version |
1050 g |
| Flight time | 38 minutes (smart battery) 47 minutes (long range smart battery) |
45 minutes [4] (with DJI Mavic 3 Series Intelligent Flight Battery and DJI Mavic 3 Enterprise Series Low-Noise Propellers) 36 minutes (with DJI Mavic 3 Enterprise Series Battery (EU C1 Version) and DJI Mavic 3 Enterprise Series Low-Noise Propellers) |
| Maximum wind speed | 10.7 m/s | 12 m/s |
| Maximum flight speed | 18m/s | 21 m/s |
| Maximum Altitude | ≤5000m | ≤6000m |
| Operating Ambient Temperature | 0 degree - 40 degree | -10 degree - 40 degree |
| Operating Frequency | 2.4000 GHz - 2.4835 GHz | 2.400-2.4835 GHz 5.725-5.850 GHz |
| Satellite navigation system | Beidou/GPS/Galileo/GLONASS | Beidou/GPS/Galileo/GLONASS |
| Maximum hovering time | Approx. 29 minutes | Approx. 38 minutes |
| Maximum flight time | 38/47 minutes | 36/45 minutes |
| Camera | ||
| Lens | Wide-angle camera: FOV 79° Telephoto camera: FOV 21.5° |
Wide-angle camera: FOV 84° Telephoto camera: FOV 15° |
| Aperture | Wide-angle camera: f/1.6 Telephoto camera: f/3.0 |
Wide-angle camera: f/2.8 Telephoto camera: f/4.4 |
| Focal length | Wide-angle camera: 4.71mm Telephoto camera: 14.46mm |
Wide-angle camera: / Telephoto camera: / |
| Equivalent Focal Length | Wide-angle camera: 24mm Telephoto camera: 120mm |
Wide-angle camera: 24mm Telephoto camera: 162mm |
| Image Sensor | Wide-angle camera: 1/2inch CMOS Telephoto camera: 1/2.5inch CMOS |
Wide-angle camera: 1/2inch CMOS Telephoto camera: 1/2inch CMOS |
| ISO Range | Wide-angle camera: Video: 100-25600 Photo: 100-6400 Telephoto camera: Video: 100-6400 Photo: 100-6400 |
Wide-angle camera: Video: 100-25600 Telephoto camera: Video: 100-25600 |
| Effective Pixels | Wide-angle camera: 48MP Telephoto camera: 13MP |
Wide-angle camera: 48MP/12MP Telephoto camera: 12MP |
| Video Format | MP4 | MP4 |
| Video Resolution | Wide-angle camera: 4K: 3840×2160@60/30/25/24fps Telephoto camera: 4K: 3840×2160@30/25/24fps |
Wide-angle camera: 4K: 3840×2160@30fps FHD: 1920×1080@30fps Telephoto camera: 4K: 3840×2160@30fps FHD: 1920×1080@30fps |
| Zoom | Wide-angle camera: 1 倍 - 5 倍 Telephoto camera: 5 倍 - 30 倍 |
Wide-angle camera: / Telephoto camera: 8 倍 - 56 倍 |
| Shutter Speed | 1/8000 秒 - 2 秒 | 1/8000 秒 - 8 秒 |
| Thermal Imaging Cameras | ||
| Thermal Imaging Sensor | VOx | VOx |
| Lens | FOV 30.7° | DFOV: 61° |
| Focal length | 19mm | / |
| Equivalent focal length | 80mm | 40mm |
| Aperture | F/1.1 | F/1.0 |
| Depth of field | 7.6m ~+∞ | 5m ~+∞ |
| Wavelength range | 8~14μm | 8~14μm |
| Photo size | 640×480 | 640×512 |
| Photo format | JPG | JPEG (8 位) R-JPEG (16 位) |
| Video resolution | 640×480@30fps | 640×512@30fps |
| Video format | MP4 | MP4 |
| Zoom | 1 - 8X | 1 - 28X |
| Heads | ||
| Three-axis mechanical head structure design range | -115° ~ 40° (Pitch) -30° ~ 30° (Roll) -40° ~ 40° (Yaw) |
-135° ~ 45° (Pitch) -45° ~ 45° (Roll) -27° ~ 27° (Yaw) |
| Controlled Rotation Range | 10° ~ -90(Pitch) | ' -90° ~ 35(Pitch) |
| Angular Momentum Range | ±0.01° | ±0.007° |

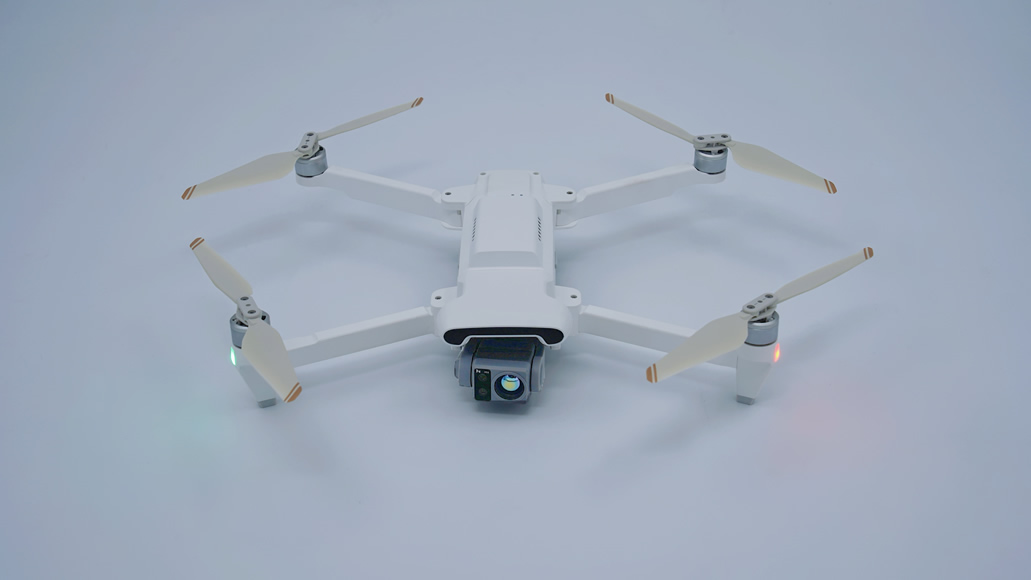

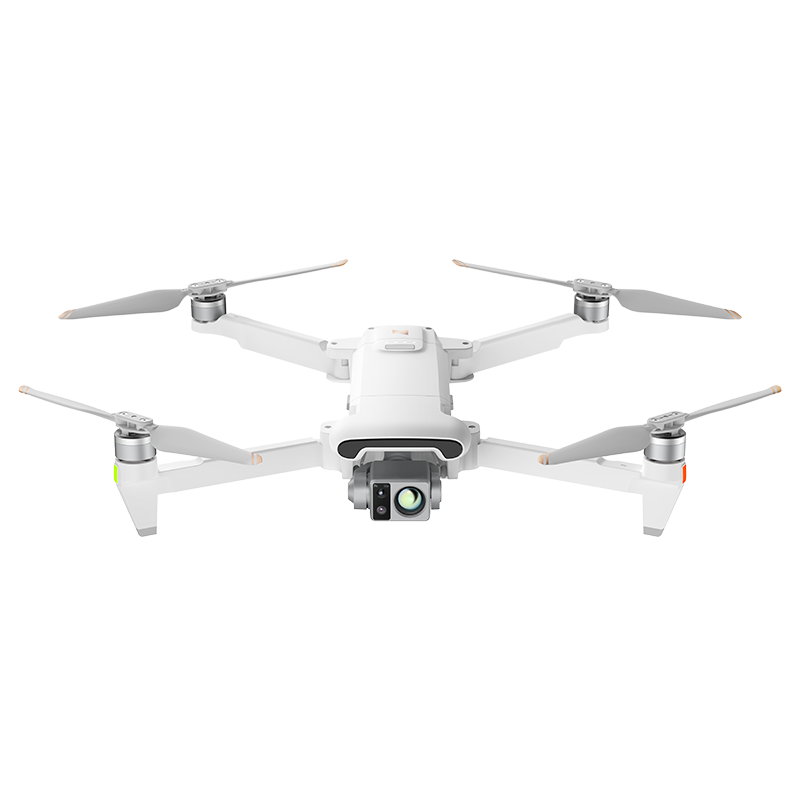

| Product Picture |  |
 |
